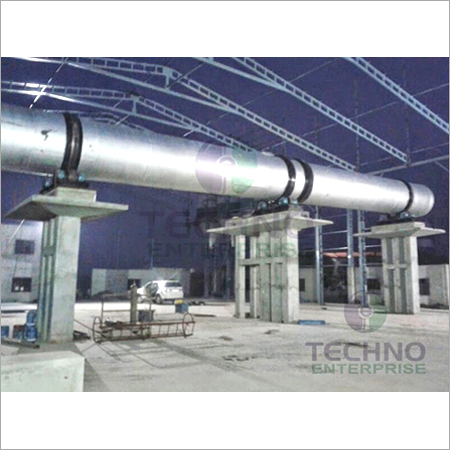

Fly Ash Dryer
Product Details:
Product Description
Our company is a praiseworthy manufacturer, supplier and exporter of Fly Ash Dryer, which is mainly utilized for cooling and drying of free flowing materials. This device is offered with a high quality revolving shell, which is fixed on tires and rollers. Our device is suitable for drying coal, fly ash, sand, clay, slag etc. Our Fly Ash Dryer finds wide application in chemical as well as construction sector. We design our machine as per defined quality guidelines and it can be customized as per the specifications given by our clients.
Model
(Continue Drying Processes 1.8 To 30 tons P/H)
30" X 26 Foot to 8 feet X 60 Foot & above [0.5 to 15 tons Capacity] Direct Gear Drive and Counter Gear for weight reduction
Contraction
MS + in side fire Frick
Structure
- Hopper
- Pre-roll ring
- After-roll ring
- Big gear
- Small gear
- Drying roller
- Roller block
- Discharging port
- Cyclone
- Draft fan
- Variable motor
- Reduction gear
- Furnace body
Technical Specifications:
| S.N | Size | Processing | HP | RPM | Input | Output | Coal | Feed inlet |
|---|---|---|---|---|---|---|---|---|
|
| MM | Tons | Motor | Mint. | Moisture | Moisture | Calorific Value | Temperature |
| 1 | 1200 x 10000 | 1.8-5 | 7.5 | 4 | 15-25% | <8% | >5500 KCAL/KG | 700±50oC |
| 2 | 1200 x 12000 | 1.8-5 | 11 | 4 | 15-25% | <8% | >5500 KCAL/KG | 700±50oC |
| 3 | 1500 X14000 | 10-12.5 | 15 | 3 | 15-25% | <8% | >5500 KCAL/KG | 800±50oC |
| 4 | 1800 X 14000 | 15-18 | 18.5 | 3 | 15-25% | <8% | >5500 KCAL/KG | 800±50oC |
| 5 | 2000 X 16000 | 20-25 | 18.5 | 2.5 | 15-25% | <8% | >5500 KCAL/KG | 800±50oC |
| 6 | 2200 X 18000 | 25-30 | 22 | 2.5 | 15-25% | <8% | >5500 KCAL/KG | 800±50oC |
